Altronix SMP5 6V/12V/fuente de alimentación/Cargador
Beneficio Efectivo - ACH
Q360.00
Precio normal
Q
378.36
NO elegible para cuotas

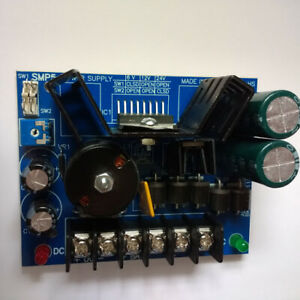

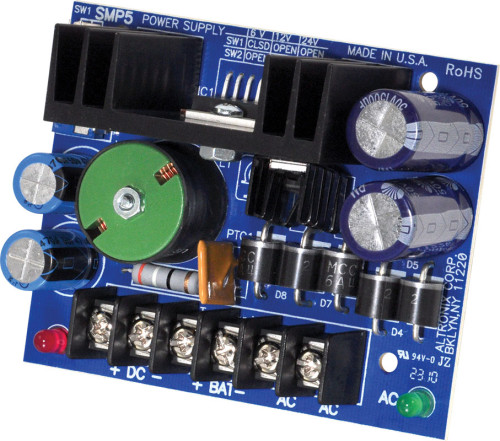

SMP5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output.
This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
💚 Disponible online!
Recibe 15. abril - 17. abril
Precios exclusivos en linea!
*Precio sujeto a cambios sin aviso- Precio efectivo exclusivo pedidos online
** 10 Neocuotas / 12 cuotas BACPrecio Normal aplica otras formas de pago
Efectivo contra entrega
Deposito / Transferencia / ACH
App móviles
Tarjeta NeoLink
-
Input
- 6VDC applications use TP1640.
- 12VDC applications use T2428100.
- 24VDC applications use T2428175.
-
Output
- 6VDC, 12VDC or 24VDC selectable output.
- 4A supply current.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
-
Visual Indicators
- AC input and DC output LED indicators.
-
Electrical
-
-
Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: – 20° C to 70° C ( – 4° F to 158° F).
-
- Relative Humidity 85% +/- 5%.
-
BTU/Hr (approx.):
- 6VDC: 13 BTU/Hr.
- 12VDC: 25 BTU/Hr.
- 24VDC: 49 BTU/Hr.
-
-
-
System AC input VA requirement:
- 6VDC: 55.2VA.
- 12VDC/24VDC: 115VA.
-
-
-
Features
- Extremely compact design.
- Includes battery leads.
- Snap Trac compatible (order Altronix model number ST3).
-
Dimensions (approximate):
- 3″W x 3.5″L x 2″H (76.2 mm W x 88.9 mm L x 50.8 mm H).
Weights (approximate):
- Product Weight: 0.35 Lbs. (0.158 kg).
- Shipping Weight: 0.45 Lbs. (0.204 kg).
Data Sheet
Fichas tecnica
Guia de instalación
